This system is a compact, efficient hybrid solar solution designed for residential or small commercial use, providing reliable power, backup capability, and reduced electricity costs.

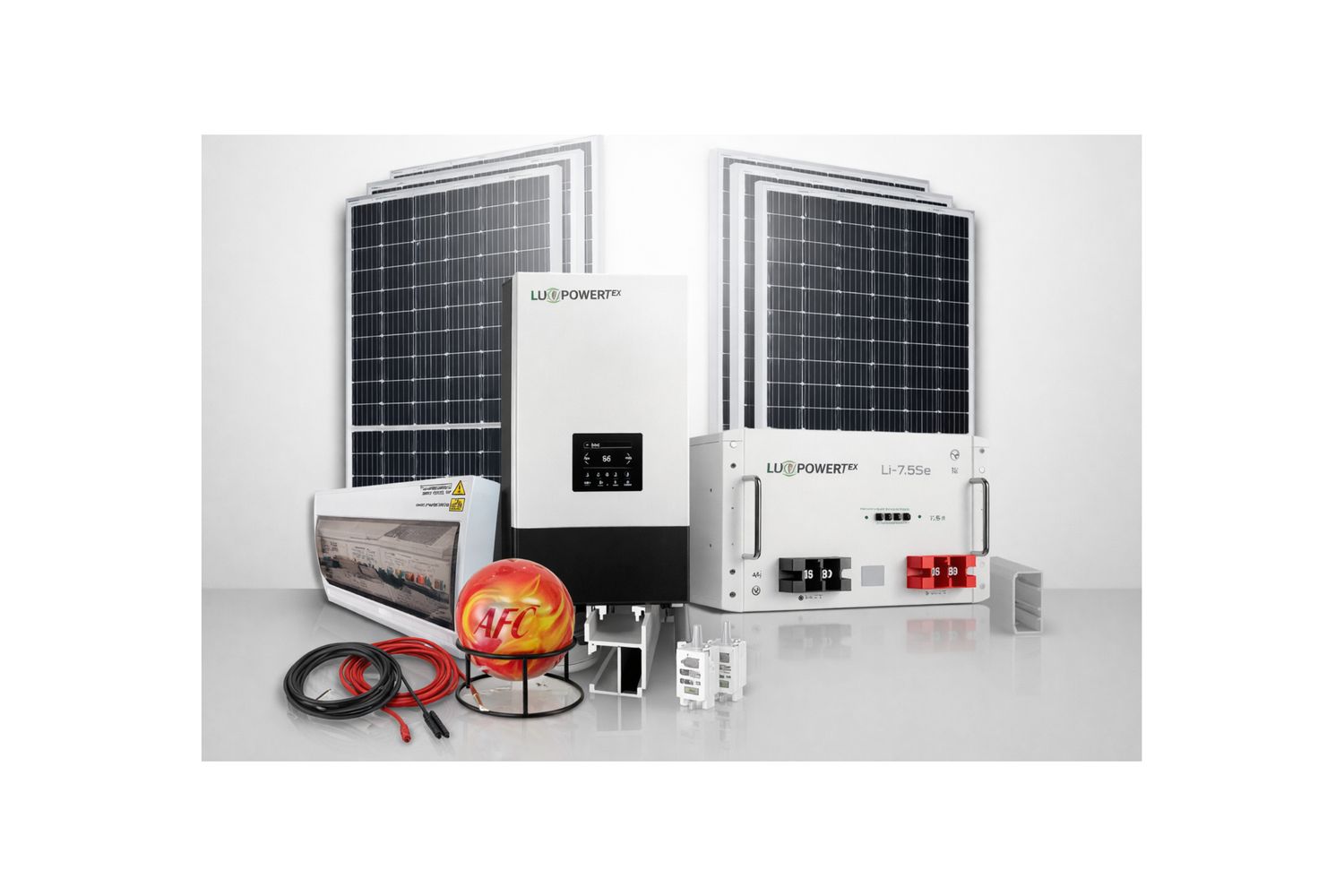

It includes a 3.6kW Luxpower hybrid inverter (24V, single-phase) paired with a 7.5kWh lithium battery, ensuring stable energy supply and backup during outages.

The solar generation component consists of 10 × 590W high-efficiency solar panels, delivering strong daytime production to power loads and charge the battery.

The installation is supported by a complete balance of system, including:

• AC combiner box (5–8kW rated) for safe grid and load integration
• DC combiner box (2-in / 2-out, 20A) for optimized panel connections
• Protection components (DC isolators, surge protection, fuses, breakers) ensuring system safety and compliance
• Battery protection equipment including fuse disconnects and blade fuses
• Mounting and trunking materials for neat, durable installation
• High-quality cabling (PV cable, welding cable, earth cable, and lugs) for efficient and safe electrical connections

This fully integrated system is designed to:

• Reduce reliance on grid electricity
• Provide backup power during outages
• Maximize solar energy usage
• Ensure long-term reliability with proper protection and installation standards
