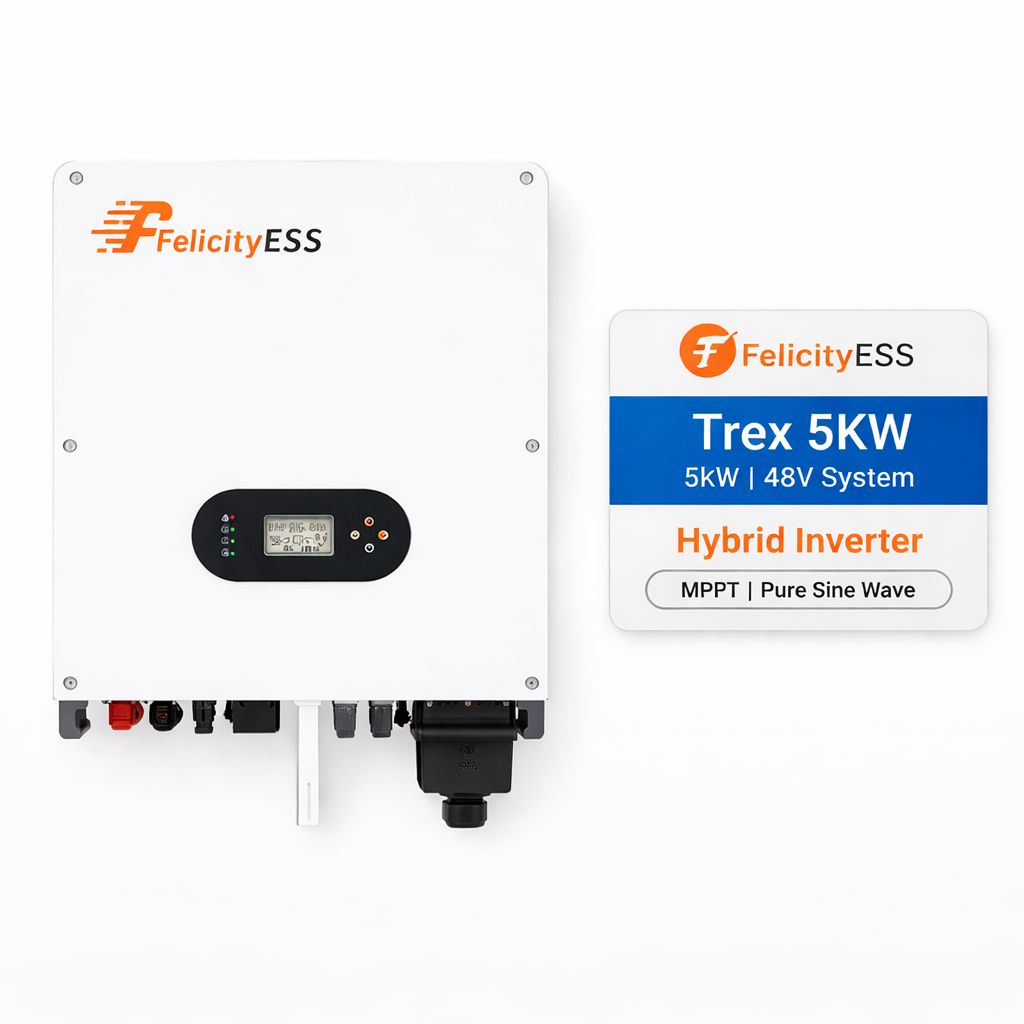

Felicity ESS Trex 5kW Hybrid Inverter (48V)

⚡ Overview

The Felicity ESS Trex 5kW Hybrid Inverter (T-REX-5KLP1G01) is a high-performance, all-in-one energy solution designed for modern homes and small businesses. Combining an inverter, MPPT solar controller, and battery charger in a single unit, it delivers reliable power whether you are grid-connected or fully off-grid.

With advanced hybrid functionality, the Trex system intelligently manages energy from solar panels, batteries, and the grid, ensuring maximum efficiency and uninterrupted power supply during outages.

✅ Key Features

• 🔹 5kW / 5000W output power (single-phase)
• 🔹 Pure sine wave output – safe for all appliances
• 🔹 Dual MPPT trackers for optimal solar performance
• 🔹 Hybrid operation (Solar + Battery + Grid / Generator)
• 🔹 UPS-grade switching for seamless power during outages
• 🔹 Remote monitoring via WiFi / App
• 🔹 Supports lithium battery activation & BMS communication
• 🔹 Parallel capability – up to 6 units for larger systems
• 🔹 Quiet natural cooling design (low noise operation)

⚙️ Technical Specifications

🔌 Inverter Output

• Rated Power: 5,000W (5kW)
• Max Apparent Power: up to 6kVA
• Output Voltage: 230V AC (Single Phase)
• Efficiency: up to 97%
• Switching Time: UPS-level fast transfer

🔋 Battery System

• Battery Voltage Range: 40V – 60V (48V system)
• Battery Type: Lithium-ion & Lead-acid compatible
• Max Charge/Discharge Current: up to 120A
• Smart battery management with BMS communication (CAN/RS485)

☀️ Solar (PV Input)

• Max Recommended PV Power: up to 6.5kW – 7.8kW
• MPPT Trackers: 2 (dual MPPT)
• Wide MPPT Voltage Range: approx. 220V – 500V
• MPPT Efficiency: up to 99.9%

🔌 AC Input (Grid / Generator)

• Supports utility grid and generator input
• Automatic switching between power sources
• Stable output during load shedding and outages

📡 Monitoring & Communication

• Built-in WiFi monitoring
• Mobile & web-based real-time tracking
• Communication ports: RS232 / RS485 / CAN

📏 Physical & Installation

• Phase: Single phase
• Protection Rating: IP65 (outdoor capable)
• Parallel Operation: Up to 6 units
• Designed for wall-mounted installation

🏠 Ideal Applications

• Residential solar systems
• Load shedding backup solutions
• Small businesses & offices
• Hybrid solar + battery installations
• Off-grid or grid-tied systems

💡 Why Choose the Trex 5kW?

• ✔ High efficiency for maximum solar savings
• ✔ Scalable system (expand with parallel units)
• ✔ Reliable backup power during outages
• ✔ Smart energy management (solar first priority)
• ✔ Advanced monitoring and control
