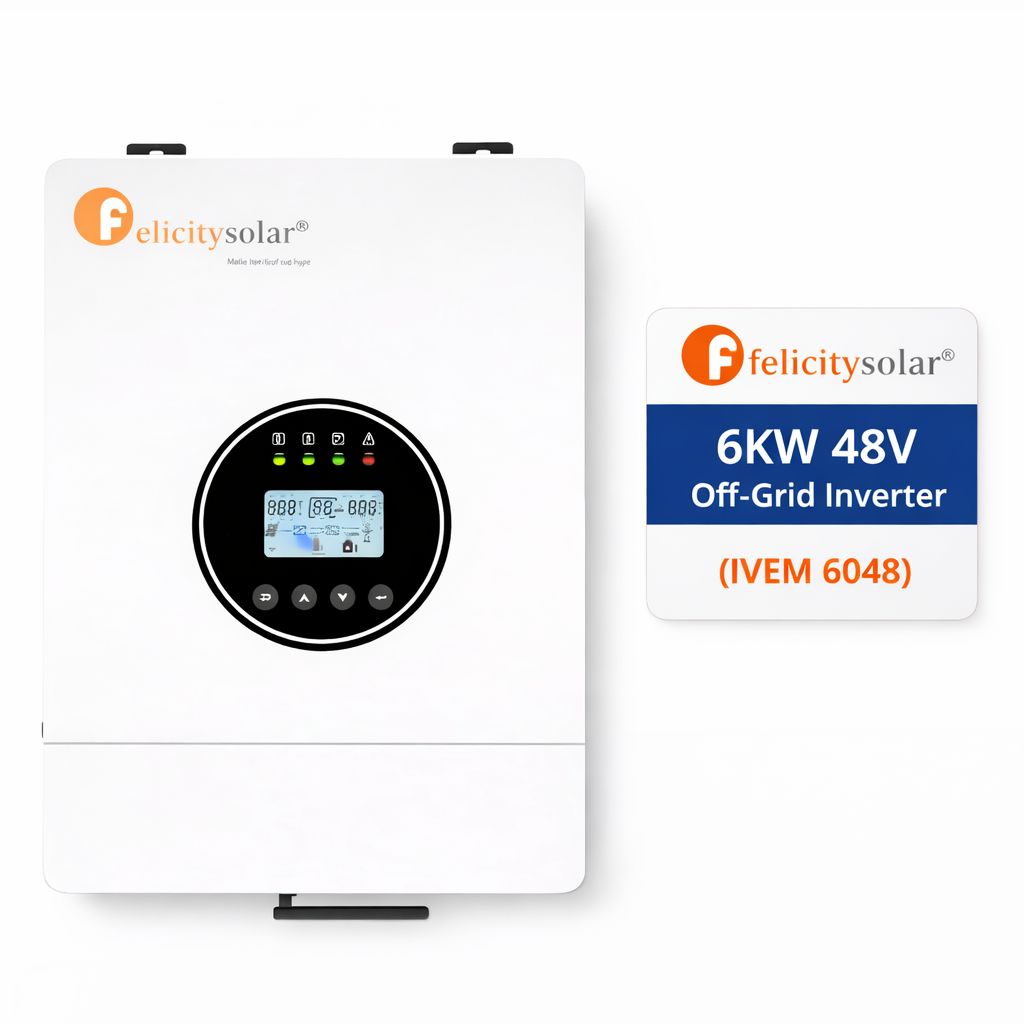

6kW 48V Off-Grid Inverter (IVEM Series)

⚡ Overview

The Felicity Solar IVEM6048 is a robust 6kW off-grid inverter designed for reliable power delivery in residential and small commercial applications. Built for performance and efficiency, it combines a pure sine wave inverter, MPPT solar charge controller, and intelligent battery charger into one compact unit.

Perfect for load shedding, backup systems, and off-grid installations, the IVEM6048 ensures stable, uninterrupted power using solar energy, batteries, and optional grid or generator input.

✅ Key Features

• 🔹 6kW / 6000W pure sine wave output – safe for all appliances
• 🔹 48V battery system – more efficient and ideal for larger setups
• 🔹 Built-in MPPT solar charge controller
• 🔹 Hybrid functionality (Solar + Battery + Grid / Generator)
• 🔹 LCD display with real-time system monitoring
• 🔹 Configurable charging & power priority settings
• 🔹 Automatic restart and seamless switching during outages
• 🔹 Comprehensive protection systems (overload, short circuit, temperature, voltage)

⚙️ Technical Specifications

🔌 Inverter Output

• Rated Power: 6000W / 6000VA
• Waveform: Pure sine wave
• Output Voltage: 230V AC (Single Phase)
• Frequency: 50Hz / 60Hz auto-detect
• Efficiency: Up to ±90–93%
• Surge Power: Handles high startup loads (motors, fridges, pumps)

🔋 Battery System

• Nominal Voltage: 48V
• Battery Compatibility: Lithium-ion & Lead-acid
• Charging: Intelligent multi-stage charging
• Higher efficiency and lower current compared to 24V systems

☀️ Solar (MPPT Charger)

• Built-in MPPT Controller: Yes
• Max PV Power: ±5000W – 6000W (system dependent)
• MPPT Voltage Range: Wide input range for flexible panel design
• Optimized solar harvesting for maximum efficiency

🔌 AC Input (Grid / Generator)

• Compatible with utility power or generator
• Automatic transfer switching
• Ensures uninterrupted power during load shedding

🛡️ Protection Features

• Overload protection
• Short-circuit protection
• Over-temperature protection
• Over-voltage & under-voltage protection
• Intelligent fault detection system

📏 Physical & Installation

• Phase: Single phase
• Mounting: Wall-mounted design
• Cooling: Intelligent fan cooling
• Built for reliable indoor installation

🏠 Ideal Applications

• Medium to large homes
• Load shedding backup systems
• Offices & small businesses
• Solar + battery hybrid systems
• Essential and heavy-load circuits (fridges, pumps, tools)

💡 Why Choose the IVEM6048?

• ✔ Higher power capacity for demanding loads
• ✔ More efficient 48V system (lower losses)
• ✔ Reliable backup during outages
• ✔ All-in-one solution for easy installation
• ✔ Great balance between performance and affordability
