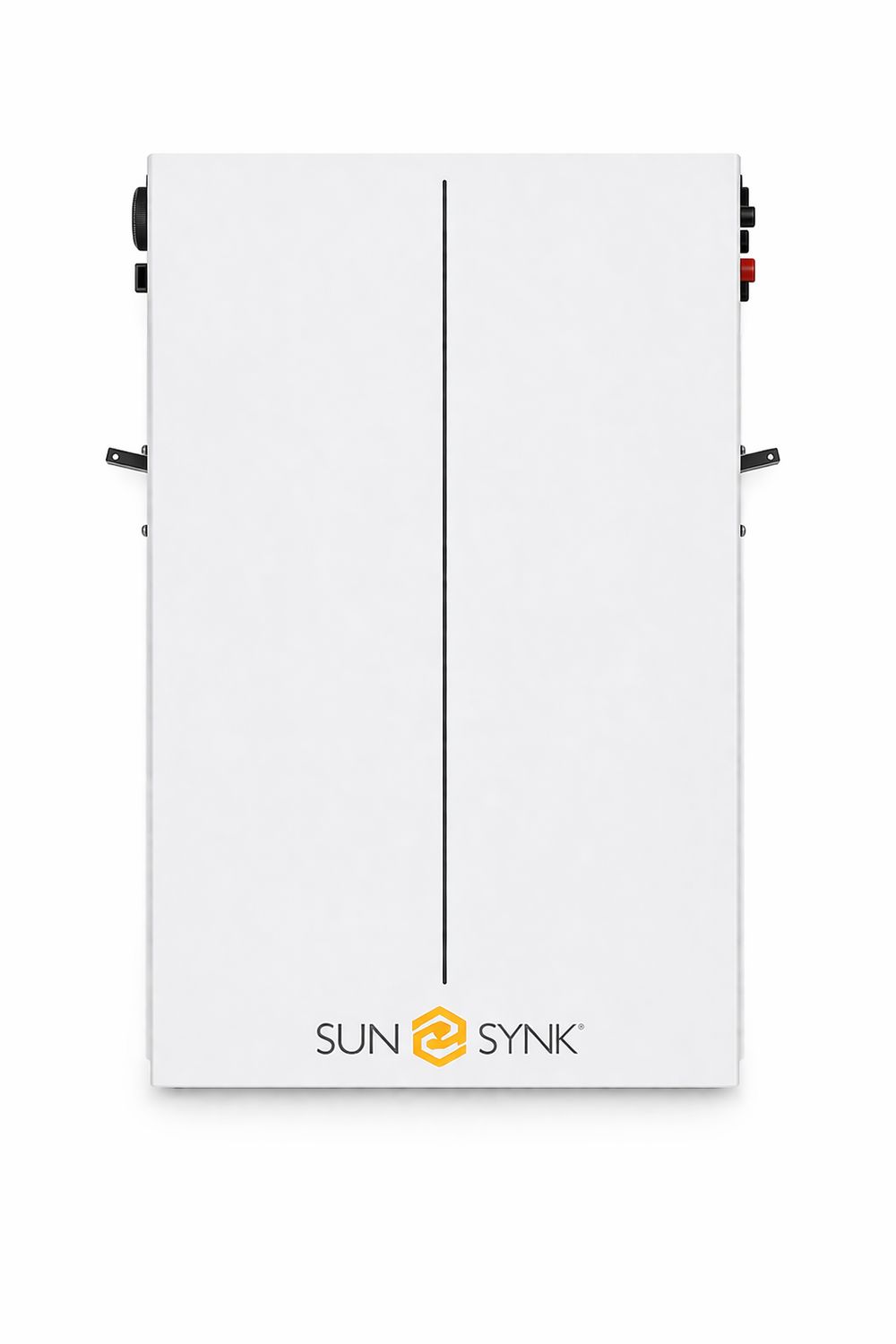

The Sunsynk 5.12kWh X-series Li-Ion Battery is a high-performance energy storage solution designed for both residential and light commercial applications. With a wall-mounted, IP65-rated design, it’s perfect for indoor or outdoor installation. The battery delivers reliable and safe energy storage, supporting a 95% depth of discharge for up to 4.864kWh of usable capacity.

Product Features

• Sunsynk 5.12kWh 51.2V 100Ah X-series Li-Ion battery.
• 95% Depth of Discharge with usable capacity of up to 4.864kWh.
• 1C discharge rating.
• Parallel capability of up to 8 units delivering 40.96kWh.
• 6000 cycles.
• IP65 rating ideal for outdoor applications.
• Wall mount design.
• Battery management system (BMS) with protection functions, including over-discharge, over-charge, over-current, and high/low temperature.
• 10 years product warranty.
• Main Parameters
  - Battery Chemistry: LiFePO4
  - Nominal Energy [1]: 5.12kWh
  - Nominal Capacity: 100Ah
  - Rated Voltage: 51.2Vdc
  - Operating Voltage Range: 43.2Vdc ~ 57.6Vdc
  - Max. Charge/Discharge Current [2]: 50A / 100A
  - Scalability: Recommended ≤3 units, Maximum 8 in Parallel

  Other Parameters
  - Depth of Discharge: 95%
  - Communication: RS485, CAN, Wi-Fi (Optional)
  - Dimensions (WxDxH): 420 x 140 x 650 mm
  - Weight: 45 kg
  - Operating Temperature:
  - Charge: -10 ~ 50°C
  - Discharge: -20 ~ 50°C
  - Humidity: 5 ~ 95% RH, no condensation
  - Altitude: <2000 m
  - Protection Level: IP65
  - Protective Class: Class I
  - Installation: Wall-mounted, Floor-to-battery
  - Cycle Life: >6000 @25°C @0.5C
  - Certification: IEC62619, CE, UN38.3, RoHS
