Geyserwise Solar PV Conversion System for 150L or 200L Geysers with Replacement AC/DC Element and 2 × 555W Panels – Installation Included
⚠️ INSTALLATION NOTICE
Installation is included. Travel and accommodation outside our normal installation area are excluded and will be quoted separately. Final installation is subject to a site assessment, roof suitability and confirmation that the existing 150L or 200L electric geyser is compatible.
CONVERT YOUR EXISTING ELECTRIC GEYSER TO SOLAR
The Geyserwise Solar PV Water Heating System converts a compatible 150L or 200L electric geyser to solar by replacing the geyser’s existing element with a specially designed dual AC/DC heating element.
The replacement element can heat the water using either:
• Solar DC power supplied directly by the dedicated solar panels
• 230V AC grid electricity when additional heating is required
Two Canadian Solar 555W panels supply DC power through the Geyserwise Solar Eco MPPT controller directly to the DC side of the replacement heating element. No solar inverter or battery is required.
The replacement element is rated at:
• 2,000W on 230V AC grid electricity
• 1,100W on 72V DC solar power
During sunny conditions, the system prioritises available solar energy to heat the water. Grid electricity remains available through the AC side of the replacement element when there is insufficient solar energy, helping to ensure a reliable hot-water supply.

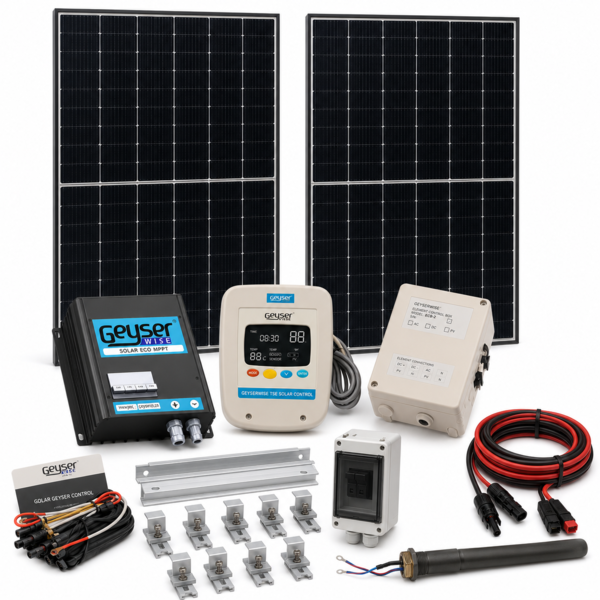

SYSTEM INCLUDES
• 1 × Replacement 2,000W AC / 1,100W DC dual heating element
• 1 × Geyserwise Solar Eco 72V MPPT controller with Tuya connectivity option
• 1 × Geyserwise temperature-control system
• 1 × Stainless-steel temperature sensor tube
• 2 × Canadian Solar 555W solar panels
• Total solar-array capacity of 1,110Wp
• Pre-galvanised solar-panel mounting structure
• Solar-panel mounting clips
• Anderson and MC4 connectors
• Inline fuse holder with 30A fuse
• 6mm² solar PV cabling
• Element connection cable
• Required flange, where applicable
• Removal of the existing geyser element
• Installation of the replacement AC/DC element
• Professional installation and commissioning
• Electrical Certificate of Compliance where applicable
SMART CONNECTIVITY OPTION
The Geyserwise Solar Eco MPPT controller includes a Tuya connectivity option, allowing compatible smart monitoring and control features where configured and supported by the installation.
SUITABLE FOR
• Compatible 150-litre electric geysers
• Compatible 200-litre electric geysers
• Low- and high-irradiation installation areas
• Homeowners wanting to reduce geyser electricity consumption
• Properties where a solar inverter and battery system are not required
IMPORTANT COMPATIBILITY INFORMATION
The existing geyser’s make, model, element fitting, flange type, thermostat arrangement, roof condition and installation location must be confirmed before installation.
Additional plumbing, electrical work, roof strengthening or replacement components not included in the standard package will be quoted separately where required.
Images are for illustrative purposes only. Actual product, colour, branding, packaging and specifications may vary without notice due to manufacturer updates and stock availability.
