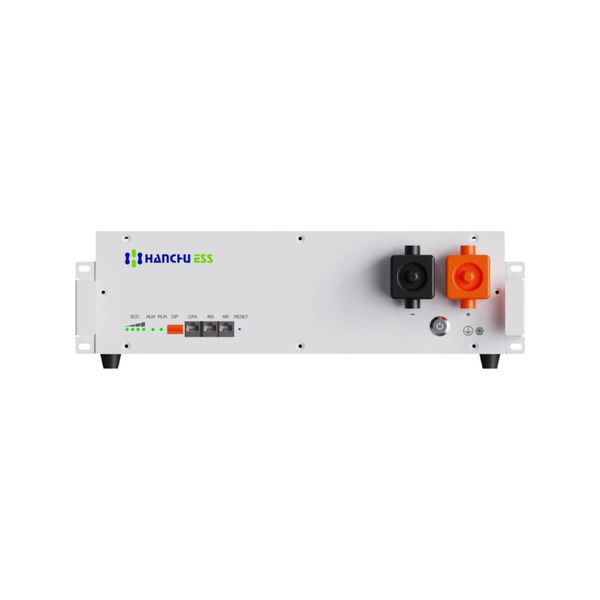

Hanchu 5.12kWh Low-Voltage Rack-Mount Lithium Battery – HOME-ESS-LV-5.12K-R

The Hanchu HOME-ESS-LV-5.12K-R is a compact rack-mounted lithium iron phosphate battery designed for residential and light-commercial solar and backup-power systems.

Its highly integrated design provides 5.12kWh of nominal storage capacity while occupying minimal installation space. CAN and RS485 communication allow compatible inverters to communicate directly with the battery-management system.

Key features

• 5.12kWh nominal energy capacity
• 51.2V low-voltage battery
• 100Ah capacity
• Safe lithium iron phosphate technology
• 100A nominal charge and discharge current
• Up to 95% depth of discharge
• CAN and RS485 inverter communication
• Integrated battery-management system
• Compact rack-mounted construction
• IP54 enclosure protection
• Suitable for expandable battery-bank installations
• IEC 62619 and CE-EMC certified

Technical specifications

• Model: HOME-ESS-LV-5.12K-R
• Battery capacity: 5.12kWh
• Nominal voltage: 51.2V
• Capacity: 100Ah
• Cell chemistry: LiFePO₄
• Nominal charge current: 100A
• Nominal discharge current: 100A
• Depth of discharge: Up to 95%
• Communication: CAN and RS485
• Protection rating: IP54
• Dimensions: 422 × 421 × 136mm
• Net weight: 44kg
• Certifications: IEC 62619 and CE-EMC

Compatibility must be confirmed against the inverter model and battery communication protocol before installation. Installation and delivery are not included unless specifically stated.
