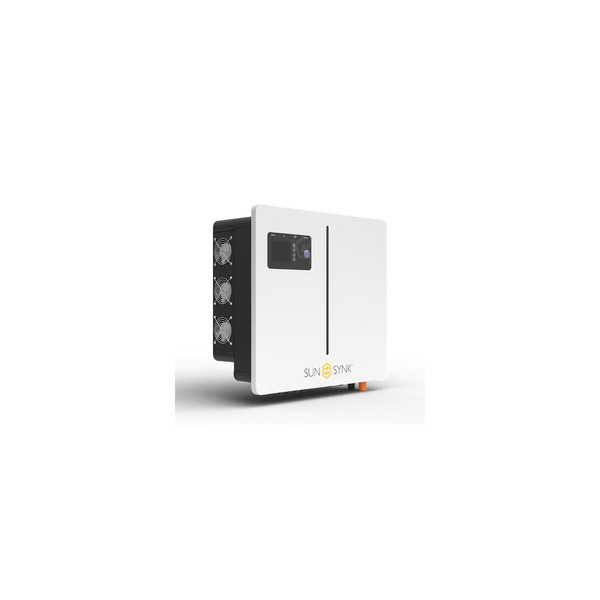

Sunsynk Lynks Pro 12kW Three-Phase Hybrid Inverter LV – IP65
The Sunsynk Lynks Pro 12kW Three-Phase Hybrid Inverter is designed for large homes, farms, workshops and commercial properties with a three-phase electricity connection.
It intelligently manages electricity from solar panels, batteries and the grid while providing balanced three-phase power, reliable backup capability and advanced export control.
Key Features:
• 12kW total three-phase output
• 40–60V low-voltage battery system
• Maximum battery charging current of 220A
• Maximum battery discharge current of 260A
• Maximum PV input capacity of 18kW
• Maximum PV input voltage of 800V
• MPPT operating range of 200–650V
• Two independent MPPT solar trackers
• Maximum PV input current of 28A per MPPT
• Three-phase output at 220/380V or 230/400V
• Maximum bypass current of 63A
• Approximately 10ms transfer time
• Maximum efficiency of approximately 97.6%
• Advanced three-phase export-control functionality
• Suitable for zero-export configuration
• IP65-rated enclosure
• Touchscreen control display
• Wi-Fi remote monitoring capability
• CT clamp and Wi-Fi dongle supplied as standard
• Model: SS-12kW-LLKS-HYB-3P-IP65-04
Important Output Note:
The inverter supplies 12kW in total across the three phases. It does not supply 12kW on each phase.
The Lynks Pro 12kW three-phase model is ideal for properties requiring balanced power distribution, higher PV string voltages and substantial low-voltage battery capacity.
Compatibility Notice:
Battery and parallel-inverter compatibility must be confirmed before installation. The inverter must only be connected to approved compatible battery models and correctly designed protection equipment.
Important:
Professional installation and the appropriate AC, DC and battery protection equipment are required. Batteries, solar panels, mounting equipment, delivery and installation are excluded unless specifically included in your quotation.
Contact RSA Solar Supplier for a complete system quotation.
