Description

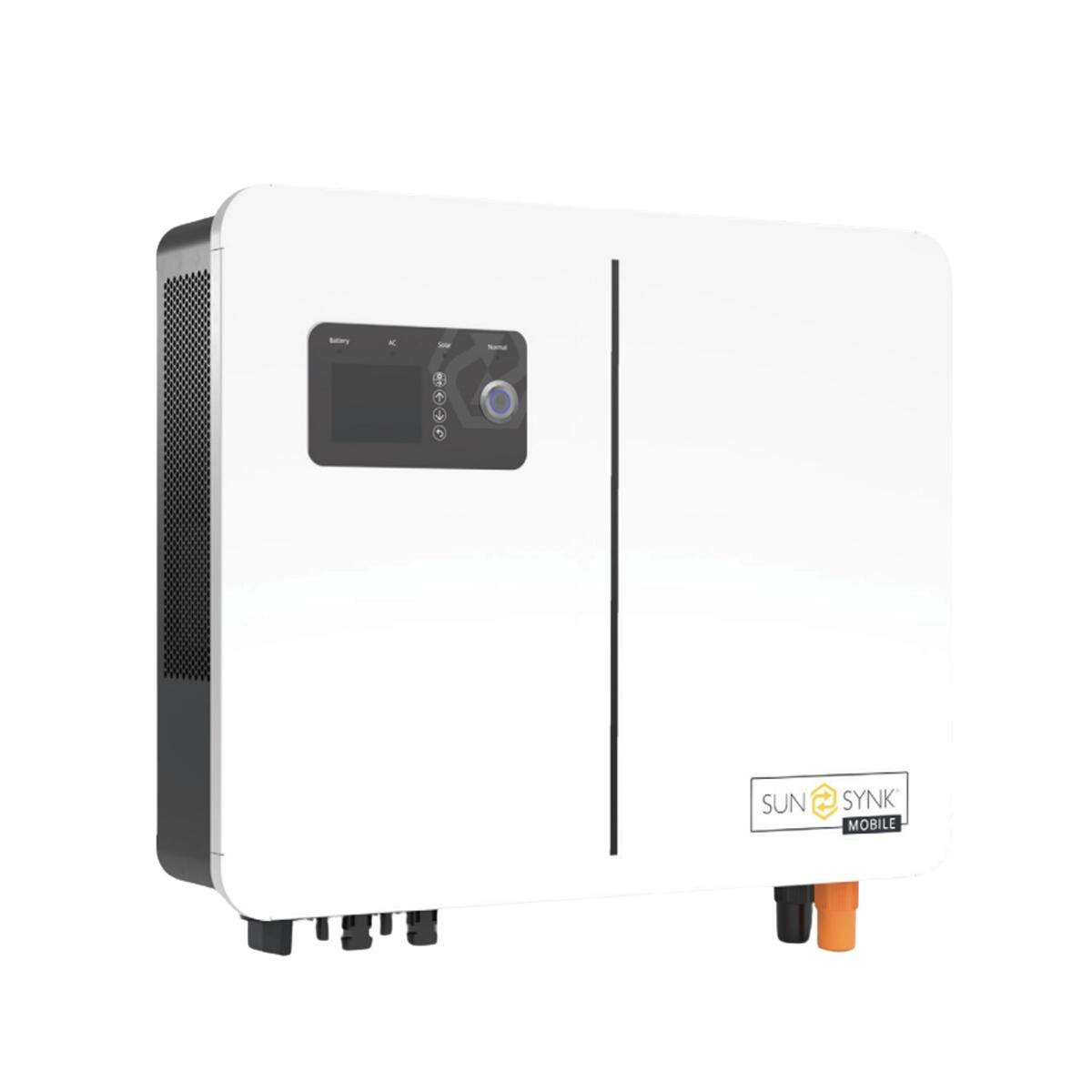

The Sunsynk Mobile Lynks 6kW Hybrid Inverter is an affordable and versatile single-phase inverter designed for residential and small-business solar installations.
It intelligently manages power from solar panels, low-voltage batteries and the electricity grid, helping reduce grid consumption while providing dependable backup power during outages.
Key features:
• 6,000W continuous AC output
• 12,000VA peak output capability
• Single-phase 220V, 230V or 240V operation
• Hybrid, grid-connected and backup operation
• 48V low-voltage battery system
• Compatible with lithium-ion and lead-acid batteries
• Battery voltage range: 40–60V
• Maximum configurable charging current: 100A
• Maximum configurable discharge current: 130A
• Two independent MPPT solar inputs
• Maximum recommended PV input: 8,000W
• Maximum PV input voltage: 500V
• MPPT operating range: 120–450V
• Maximum PV input current: 15A per MPPT
• Maximum inverter efficiency: 97.6%
• Fast 10ms transfer between grid and inverter power
• Compatible with the Sunsynk data logger and monitoring platform
• Integrated overload, short-circuit, temperature and battery protection
Model: SM6.0kWLLL
Important: This listing is for the standard Lynks 6kW model. It should not be confused with the separate SM6.0kWLLL65 IP65 model.
Professional installation by a qualified solar installer or electrician is recommended.
